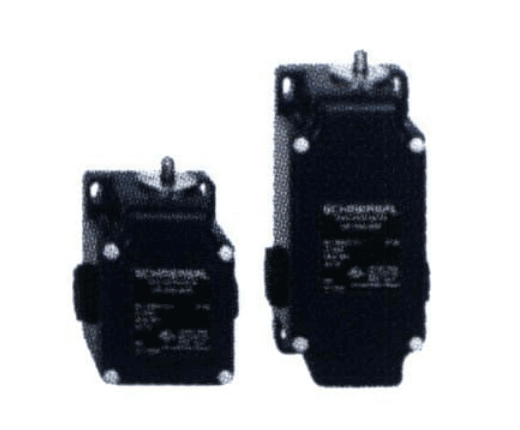

SCHMERSAL U Series Limit Sensor Switch
— Contact type is adjustable. U series 2/4 contacts Metal housing Switching point

Technical Features

Contact type adjustable

U series 2/4 contacts Metal housing Switching point

Products Specifications

Property	U 432	U 434
Technical Parameters
Electrical data
Switching principle	Slow action	Slow action
Max. switching capacity U/I	Snap action type: –	Snap action type: –
Max. switching capacity U/I	Slow action type: 400 VAC / 6 A	Slow action type: 400 VAC / 6 A
Mechanical data
Housing material	Die-cast aluminum, painted	Die-cast aluminum, painted
Cable entry	3 x M20	3 x M20
Connection	Screw terminals	Screw terminals
Cable cross-section ¹⁾	Max. 2.5 mm²	Max. 2.5 mm²
Dimensions (WxHxD)	62 x 80 x 50 mm	62 x 127 x 50 mm
Ambient conditions
Ambient temperature	-20 °C … +60 °C	-20 °C … +60 °C
Ambient temperature	Low temp. to -30 °C (-1272)	Low temp. to -30 °C (-1272)
Degree of protection	IP65	IP65
Safety classification
Standard	IEC 60947-5-1	IEC 60947-5-1
B10D NC contacts	2,000,000	2,000,000
Certificates

U Series recommended models and ordering information

Series	Switching system	Contacts	Actuator	Type designation	Article no.
U 432/434	Slow action	2 NC	Roller plunger K	UK 432Y	101166388
Plunger S	US 432Y	101176036
Rod V	UV 432Y	101162761
Rod lever 10H	UV10H 432Y	101060554
Roller arm 3H	UV3H 432Y	101060537
Rod lever 9H	UV9H 432Y	101060553
Roller arm H	UVH 432Y	101161093
2 NO / 2 NC	Plunger S	US 434Y	101176035
Auxiliary actuating lever		Spring rod 6H		101064152
Spring rod lever on shaft 4H	101064151
Roller arm 3H	101064143
Roller arm 7H	101064153
Roller arm 8H	101064239
Roller arm H	101064128
Rod lever 10H	101064157
Rod lever 9H	101064156

Advantages Of SCHMERSAL Limit Sensor Switch

System-universal series

Position detection and monitoring, compact and rugged design.

Thanks to these features, the new PS series of limit switches is suitable for a wide range of applications in all areas of mechanical and plant engineering as well as elevator technology.

Overview of the advantages of the new PS series of limit switches:

Reliable position detection
Wide range of uses
Safe and reliable
Modular design, can be combined in various ways

Application areas

In accordance with ISO 14119, the Category 1 PS series of limit switches is suitable for confirming and monitoring the position of moving parts on machines and of laterally moving or hinged guards, and can be used in all industrial environments.

The PS series of limit switches, with protection ratings up to IP66 and IP67, meets the requirements for use in harsh environments.

Design and operating principle

All PS series limit switches are equipped with positive break NC contacts in accordance with IEC 60947-5-1, and are available in snap-action and slow-action versions. In conjunction with a suitable safety controller, Performance Level PL d can be achieved with a single limit switch. In accordance with ISO 13849-1, Performance Level PL e can be achieved using two limit switches.

Flexible solutions

Switching elements with up to 3 contacts

Switching elements with three contacts ensure redundant disconnection and are supplied with a signalling contact. All switching elements with various contact combinations are equipped with electrically isolated contacts with positive break NC contacts.

Latching function

To latch the switching status, versions with snap action and an optional latching function are available. In these versions, the actuating element must be manually reset.

Modular diversity

The modular design gives all series a consistent range of components, reduces the number of different versions, reduces the amount of work required for storage and increases availability.
